Probabilistic Programming in Scala

1 Introduction to Bayesian Inference

1.1 Bayesian Statistics

• Bayesian statistics is concerned with expressing uncertainty using probability
• Provides a framework for subjective beliefs and updating - reflecting how people reason in real life

1.2 Bayes Theorem

• Bayes theorem allows us to determine the probability of a hypothesis being true by collecting data related to the hypothesis

\(p(H|y) = \frac{P(y|H)p(H)}{\int p(y)}\)

1.3 Finding the integral

• The denominator of Bayes theorem is often intractable
• Sampling based inference methods can be used to approximate the posterior distribution

2 Probabilistic Programming

2.1 What is Probabilistic Programming?

• Efficiently expressing Bayesian statistical models and performing inference
• Provide a consistent, flexible modelling language for specifying prior beliefs and likelihooods
• Abstract away the inference algorithms from the user

2.2 Examples of PPLs

• Stan http://mc-stan.org/
• BUGS https://www.mrc-bsu.cam.ac.uk/software/bugs/
• Jags http://mcmc-jags.sourceforge.net/
• PyMc https://pymc-devs.github.io/pymc/
• Pyro (Uber) https://github.com/uber/pyro
• TensorFlow Probability (Google) https://www.tensorflow.org/probability/
• Rainier (Stripe) https://github.com/stripe/rainier/

2.3 Why?

• Small data
• Transparent, interpretable models
• Incorporate expert judgment required in many areas of business

3 Statistical Computation

3.1 Conjugacy

• The prior distribution is the same distribution as the posterior distribution and can be derived analytically
• Only applicable for some models

3.2 Gibbs Sampling

• Markov chain Monte Carlo (MCMC) method which exploits conditional probability to derive conditionally conjugate distributions
• Sample from each conditional conjugate distribution in turn to create a Markov chain representing draws from the full posterior distribution
• Restricts the form of the prior distribution to a conjugate family

3.3 Metropolis-Hastings

• General MCMC method with no restriction on prior distributions
• New parameters are proposed from some proposal distribution, \(\psi^\star \sim p(\psi^\star|\psi)\) and accepted according to the Metropolis-Hastings ratio \(A = \frac{p(\psi^\star)\pi(Y|\psi^\star)q(\psi|\psi^\star)}{p(\psi)\pi(Y|\psi)q(\psi^\star|\psi)}\)
• \(p(\psi)\) is the prior distribution, \(\pi(Y|\psi)\) is the likelihood, \(q(\psi|\psi^\star)\) is the probability of moving from \(\psi^\star\) to \(\psi\)

3.3.1 Metropolis-Hastings

def mhStep[P](posterior: P => Double,
              proposal: P => Dist[P]) = { p: P =>
  for {
    ps <- proposal(p)
    a = posterior(ps) - proposal(p).logPdf(ps) -
      posterior(p) + proposal(ps).logPdf(p)
    u <- Dist.uniform(0, 1)
    next = if (log(u) < a) ps else p
  } yield next
}

3.3.2 Metropolis-Hastings

• Metropolis-Hastings is simple to implement and guaranteed to converge if it's left long enough - but no one wants to wait forever
• The optimal acceptance ratio is 0.234 - most moves are rejected
• A random-walk proposal centered at the previous parameter is often a default choice \(p(\psi^\star|\psi) \sim \mathcal{N}(\psi | \Sigma)\)
• The cost of an independent sample from the stationary distribution is \(\mathcal{O}(d^2)\) for a \(d\) dimensional parameter space

3.4 Hamiltonian Monte Carlo

• Can we use gradient information from the un-normalised log posterior?

• Improved proposal based on Hamilton's Equations:

  \begin{align} \frac{\mathrm{d}p}{\mathrm{d}t} &= -\frac{\partial \mathcal{H}}{\partial q}, \\ \frac{\mathrm{d}q}{\mathrm{d}t} &= +\frac{\partial\mathcal{H}}{\partial p} \end{align}
• \(\boldsymbol{p}\) is the momentum, equal to \(m\dot{\boldsymbol{q}}\)
• \(\boldsymbol{q}\) is the particle position

3.4.1 Hamiltonian Monte Carlo

• The static parameters correspond to the position in Hamilton's equations, the momentum is an auxiliary parameter
• The joint density of the parameters and momentum can be written as: \(p(\psi, \phi) \propto \exp \left\{ \log p(\psi|y) - \frac{1}{2}\phi^T\phi \right\}\)
• A special discretisation of Hamilton's equations is used which exactly conserves energy called a leapfrog step

3.4.2 The Leapfrog step

3.4.3 Hamiltonian Monte Carlo

• The leapfrog has a tuning parameter, the step size \(\varepsilon\)
• Only continuous distributions can be used since the un-normalised log-posterior must be differentiable
• Non conjugate prior distributions can be used, like Metropolis-Hastings
• HMC is more computationally efficient, requiring \(O(d^\frac{5}{4})\) for an independent sample from the posterior distribution of a \(d\) dimensional parameter space, the optimal acceptance rate is 0.65
• Calculating derivatives is tedious and error-prone

3.4.4 HMC algorithm in Scala

def step(psi: DenseVector[Double]): Rand[DenseVector[Double]] = {
  for {
    phi <- priorPhi
    (propPsi, propPhi) = leapfrogs(eps, gradient, l, psi, phi)
    a = logAcceptance(propPsi, propPhi, psi, phi, ll, priorPhi)
    u <- Uniform(0, 1)
    next = if (log(u) < a) {
      propPsi
    } else {
      psi
    }
  } yield next
}

3.4.5 The Leapfrog step

def leapfrog(
  eps: Double,
  gradient: DenseVector[Double] => DenseVector[Double])(
  psi: DenseVector[Double],
  phi: DenseVector[Double]) = {
  val p1 = phi + eps * 0.5 * gradient(psi)
  val t1 = psi + eps * p1
  val p2 = p1 + eps * 0.5 * gradient(t1)
  (t1, p2)
}

3.4.6 Multiple leapfrog steps

def leapfrogs(
  eps: Double,
  gradient: DenseVector[Double] => DenseVector[Double],
  l: Int,
  psi: DenseVector[Double],
  phi: DenseVector[Double]) = {
    if (l == 0) {
      (theta, phi)
    } else {
      val (t, p) = leapfrog(eps, gradient, theta, phi)
      leapfrogs(eps, gradient, l-1, t, p)
    }
  }

3.5 Tuning Hamiltonian Monte Carlo

• The step size \(\varepsilon\) and the number of leapfrog steps \(l\) are tuning parameters which can be determined with pilot runs aiming for the optimal acceptance rate 0.65
• The Dual averaging and the NUTS algorithm can be used to determine an appropriate step size number of steps
• eHMC is another algorithm for automatically selecting the step size

4 Functional Programming

4.1 Good things

• Pure Functions
• Function Composition
• Immutable Data Structures
• Static Types with type inference
• Predictable, correct programs

4.2 Higher Order Functions

• Let's apply a function to a list

val xs = Array(1,2,3,4,5)
var i = 0
while (i < xs.size) {
  xs(i) = xs(i) + 1
  i += 1
}
xs

xs: Array[Int] = Array(1, 2, 3, 4, 5)
i: Int = 0
res16: Array[Int] = Array(2, 3, 4, 5, 6)

4.2.1 Map

• Maps, create a copy of the collection with the updated values

xs map (_ + 1)

res18: Array[Int] = Array(3, 4, 5, 6, 7)

def map[A, B](fa: List[A])(f: A => B): List[B]

4.2.2 Reduction

• Folds, apply a binary operation to a collection using the previous result

xs.foldLeft(0)(_ + _)

res20: Int = 20

def foldLeft[A, B](fa: List[A])(z: B)(f: (B, A) => B): B

4.2.3 flatMap

• Apply a function which returns a collection, to a collection then flatten it (sometimes called bind)

xs flatMap (x => List(x, x + 1, x + 2))

res22: Array[Int] = Array(2, 3, 4, 3, 4, 5, 4, 5, 6, 5, 6, 7, 6, 7, 8)

def flatMap[A, B](fa: List[A])(f: A => List[B]): List[B])

4.3 Polymorphism

• Sometimes static types are associated with verbosity
• Type inference and ad-hoc Polymorphism can help
• This function will add together all elements in a list which have a numeric type

def sum[A: Numeric](xs: List[A]): A =
  xs.foldLeft(_ + _)

4.4 Typeclasses

• A typeclass is an abstract implementation of a class

trait Numeric[A] {
 def compare(x: T, y: T): Int
 def fromInt(x: Int): T
 def minus(x: T, y: T): T
 def negate(x: T): T
 def plus(x: T, y: T): T
 def times(x: T, y: T): T
 def toDouble(x: T): Double
 def toFloat(x: T): Float
 def toInt(x: T): Int
 def toLong(x: T): Long
}

4.5 Typeclasses

• Concrete members of a typeclass can be provided using implicit definitions

implicit def numericInt = new Numeric[Int] { ... }

• Type safety is retained and we don't have to write functions twice

5 Category Theory

5.1 What is a Category?

• A category \(\mathcal{C}\) consists of objects \(\textrm{obj}(\mathcal{C})\) and arrows, or morphisms between categories, \(\textrm{hom}(\mathcal{C})\)
• Morphisms compose, for \(f: X \rightarrow Y\) and \(g: Y \rightarrow Z\), then \(h: X \rightarrow Z\) is in \(\textrm{hom}(\mathcal{C})\) given by \(g \circ f\)
• Objects must have identity morphisms, written \(\textrm{id}_X: X \rightarrow X\)

5.2 Functors

• A functor is a mapping between categories which preserves structure
• \(\mathcal{C}\) and \(\mathcal{D}\) are categories, then a functor \(F:\mathcal{C} \rightarrow \mathcal{D}\):
  • Associates \(X \in \mathcal{C}\) to an object \(F(X) \in \mathcal{D}\)
  • And each morphism, \(f:X \rightarrow Y\) in \(\mathcal{C}\) to a morphism in \(\mathcal{D}\), \(F(f): F(X) \rightarrow F(Y)\).
• Satisfying
  • \(F(\textrm{id}_X) = \textrm{id}_{F(X)}\) for each \(X \in \mathcal{C}\)
  • \(F(g \circ f) = F(g) \circ F(f)\) for all morphisms, \(f, g \in \mathcal{C}\)

5.3 Natural Transformation

• A functor is a morphism between two categories, a natural transformation is a morphism between functors
• \(X \in \mathcal{C}\), \(F, G: \mathcal{C} \rightarrow \mathcal{D}\) are functors, then a natural transformation \(\alpha: F(X) \Rightarrow G(X)\) is a family of morphisms such that:
  • \(\forall X \in \mathcal{C}\) then \(\alpha_X: F(X) \rightarrow G(X)\) is a morphism in \(\mathcal{D}\)
  • for each \(f \in \mathcal{C}\) then \(\alpha_Y \circ F(f) = G(f) \circ \alpha_X\).

5.3.1 Natural Transformation

5.4 Monads

• A monad is an endofunctor, \(T: \mathcal{C} \rightarrow \mathcal{C}\) with two natural transformations
  • \(\eta: \textrm{Id}_{\mathcal{c}} \rightarrow T\)
  • \(\mu: T \circ T \rightarrow T\)
• Such that \(\mu \circ T \mu = \mu \circ \mu T\)
• and \(\mu \circ T\eta = \mu \circ \eta T = \textrm{Id}_T\)

5.4.1 Monads

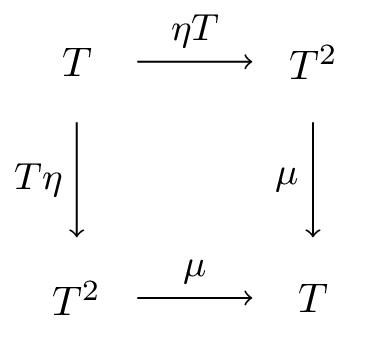

Table 1: Commutative diagrams for the monad laws

5.5 Why?

• Types and functions form a category, called Hask, every functor is hence an endofunctor, \(F: \texttt{Hask} \rightarrow \texttt{Hask}\)
• Principled abstractions for functional programming
• Testing mathematical laws instead of individual functions
• Verifying the correctness of programs

5.5.1 Distribution is a Monad

• A monad provides a context for an effect
• Can preserve immutability be encapsulating random draws in a monad Rand[A] representing a distribution over the type A
• Unit is the dirac distribution
• flatMap represents a joint or marginal distribution

def coinFlip(n: Int): Rand[Int] = Beta(3, 3).flatMap(p => Binomial(n, p))

5.5.2 Syntactic Sugar

• For comprehension provides is syntactic sugar for chains of flatMap and map

def coinFlip(n: Int): Rand[Int] = for {
  p <- Beta(3, 3)
} yield Binomial(n, p)

6 Automatic Differentiation

6.1 What?

• Calculate the exact derivative of a function at a point
• Not symbolic differentiation
• Not numeric differentiation

6.2 Forward Mode AD

• Consider the function \(f(x) = x^2 + 2x + 5\) with derivative \(f^\prime(x) = 2x + 2\)
• We wish to calculate the derivative of a \(f\) at a specific value of \(x\), suppose \(x = 5, f(5) = 40, f^\prime(5) = 12\)

6.3 Dual Numbers

• To perform forward mode AD specify the dual number to \(x = 5\), \(x^\prime = 5 + \varepsilon\) then calculate \(f(x^\prime)\):

  \begin{align*} f(5 + \varepsilon) &= (5 + \varepsilon)^2 + 2(5 + \varepsilon) + 5 \\ &= 25 + 10\varepsilon + \varepsilon^2 + 10 + 2\varepsilon + 5 \\ &= 40 + 12\varepsilon \end{align*}
• Number of computations depends on the dimension of the input space, ie. the dimension of the parameters

6.4 Implementation

• Create a new class representing a dual number:

case class Dual(real: Double, eps: Double)

• Define an instance of the Numeric[Dual] typeclass

6.4.1 Dual Operators

def plus(x: Dual, y: Dual) =
  Dual(x.real + y.real, x.eps + y.eps)
def minus(x: Dual, y: Dual): Dual =
  Dual(y.real - x.real, y.eps - x.eps)
def times(x: Dual, y: Dual) =
  Dual(x.real * y.real, x.eps * y.real + y.eps * x.real)
def div(x: Dual, y: Dual) =
  Dual(x.real / y.real,
  (x.eps * y.real - x.real * y.eps) / (y.real * y.real))

6.4.2 Dual Usage

def logPos(ys: Vector[Double])(mu: Dual) =
  (-0.5 * 0.125 * mu * mu) - 0.125 * ys.
    map(_ - mu).
    map(x => x * x).
    reduce(_ + _)

6.4.3 Extension to Gradients

• Define a new Dual class

case class DualV(real: Double, dual: Vector[Double])

• The dual argument can be confused between variables, each variable in a computation must have the same dimension dual

6.5 Reverse Mode AD

• Reverse mode AD scales in the dimension of the output space
• Faster than forward mode for \(f: \mathbb{R}^n \rightarrow \mathbb{R}^m\) when \(n > m\)

7 Putting it all together

7.1 Building our own PPL

• Embedded DSL for model building using Monads
• Fast generic inference schemes for sampling from posterior distributions
• Automatic differentiation for gradient based samplers

7.2 Linear Regression

7.2.1 Linear Regression

val model = for {
  b0 <- Normal(0.0, 5.0).param
  b1 <- Normal(0.0, 5.0).param
  b2 <- Normal(0.0, 5.0).param
  sigma <- Gamma(2.0, 2.0).param
  _ <- Predictor.fromDoubleVector { xs =>
    {
      val mean = b0 + b1 * xs.head + b2 * xs(1)
      Normal(mean, sigma)
    }
  }
  .fit(x zip y)
} yield Map("b0" -> b0, "b1" -> b1, "b2" -> b2, "sigma" -> sigma)

model.sample(EHMC(10), 5000, 10000 * 20, 20)

7.2.2 Linear Regression

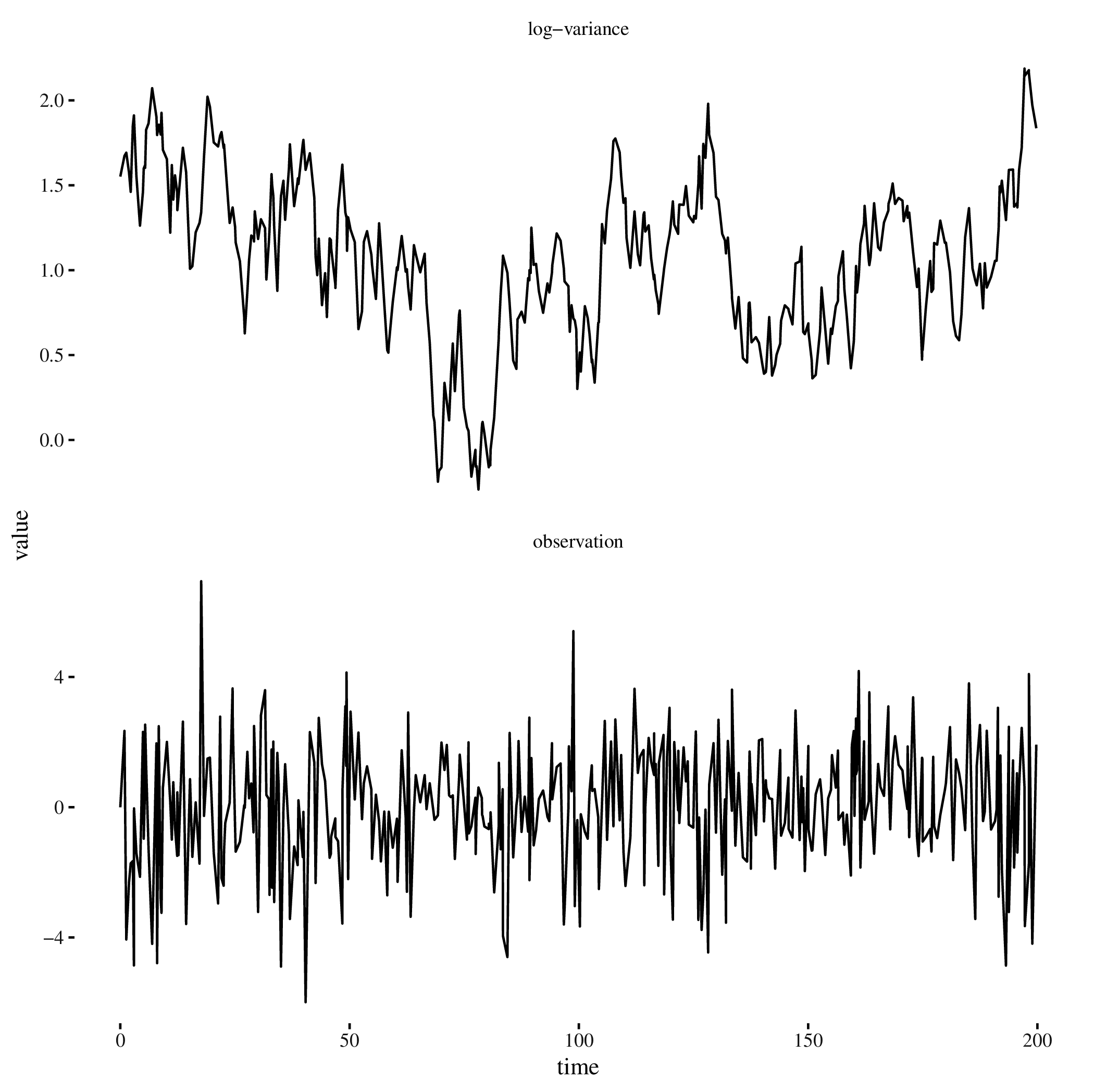

7.3 Stochastic Volatility

• A heteroskedastic time series with latent log-volatility \(\alpha_t\)

7.3.1 Stochastic Volatility

7.3.2 Stochastic Volatility

val prior = for {
  phi1 <- Beta(5.0, 2.0).param
  phi = 2 * phi1 - 1
  mu <- Normal(0.0, 2.0).param
  sigma <- LogNormal(2.0, 2.0).param
  x0 <- Normal(mu, sigma * sigma / (1 - phi * phi)).param
  t0 = 0.0
} yield (t0, phi, mu, sigma, x0)

def ouStep(phi: Real, mu: Real, sigma: Real, x0: Real, dt: Double) = {
  val mean = mu + (-1.0 * phi * dt).exp * (x0 - mu)
  val variance = sigma.pow(2) * (1 - (-2 * phi * dt).exp) / (2*phi)
  Normal(mean, variance.pow(0.5))
}

7.3.3 Stochastic Volatility

def step(st: RandomVariable[(Double, Real, Real, Real, Real)],
         y: (Double, Double)) = for {
    (t, phi, mu, sigma, x0) <- st
    dt = y._1 - t
    x1 <- ouStep(phi, mu, sigma, x0, dt).param
    _ <- Normal(0.0, (x1 * 0.5).exp).fit(y._2)
  } yield (t + dt, phi, mu, sigma, x1)


val fullModel = ys.foldLeft(prior)(step)

7.4 Mixture Model

• Data is assumed to come from one of \(k\) distributions

7.4.1 Mixture Model

7.4.2 Mixture Model

val model = for {
  theta1 <- Beta(2.0, 5.0).param
  theta2 <- Beta(2.0, 5.0).param
  alphas = Seq(theta1.log, theta2.log, Real.zero)
  thetas = softmax(alphas)
  mu1 <- Normal(0.0, 5.0).param
  mu2 <- Normal(0.0, 5.0).param
  mu3 <- Normal(0.0, 5.0).param
  mus = Seq(mu1, mu2, mu3)
  sigma <- Gamma(2.0, 10.0).param
  components: Map[Continuous, Real] = mus.zip(thetas).map {
    case (m: Real, t: Real) => (Normal(m, sigma) -> t) }.toMap
  _ <- Mixture(components).fit(ys)
} yield Map("theta1" -> thetas.head, "theta2" -> thetas(1),
              "theta3" -> thetas(2),
                "mu1" -> mu1, "mu2" -> mu2, "mu3" -> mu3, "sigma" -> sigma)

7.4.3 Mixture Model

8 Conclusion

• Probabilistic programming languages can be used to quickly prototype new models without implementing and testing new inference schemes
• Embedded PPLs can be deployed in production code without rewriting - reducing bugs and enabling faster inference in industrial settings
